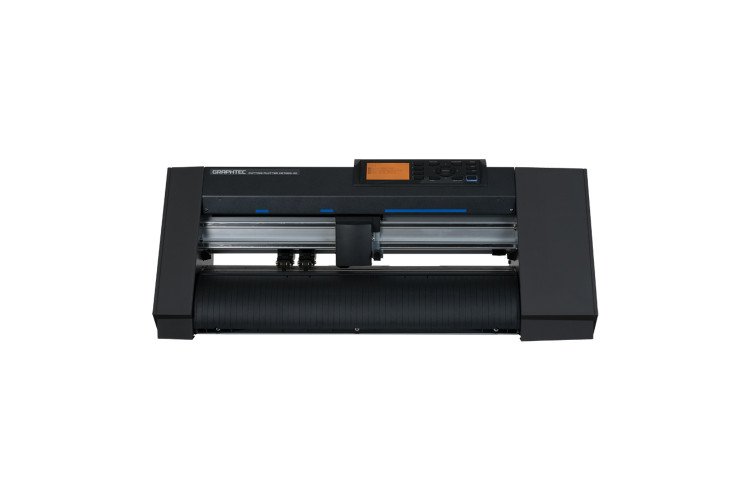

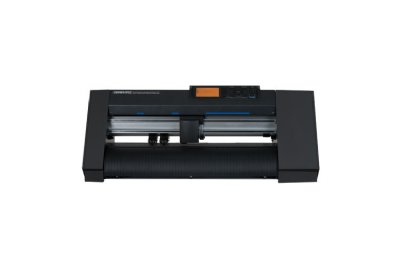

Graphtec CE7000-40 15" Professional Cutter Plotter
Graphtec CE7000-40 15" Professional Cutter Plotter
SKU: CE7000-40
The NEW CE7000 model serves the garment decoration, sign graphics, PRINT and CUT graphics, automotive markets and many more
You can earn 1395 SIGN BUCKS on this product!
Price: $1,395.00
Add to Wishlist Add to Wishlist
Previous Item Previous Item   Next Item Next Item
Product Details
The New CE7000 Series boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. The NEW CE7000 Series comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Cutting Master 4 plug in for Adobe and Corel Users and our ever-Popular Graphtec Pro Studio software for design and cut graphics. The CE7000 series works with both PC and MAC platforms or use the handy new USB Thumb Drive Port if needed.
  • New 8.0 ARMS for fast and accurate print and cut applications with XY compensation feature
  • Data Link Bar Code feature for maximum productivity
  • NEW easy to use USB Thumb Drive connectivity so NO computer needed!



Item CE7000-40 CE7000-60 CE7000-130
Configuration Grit roller with digital servo drive system
Maximum cutting area (W x L)

15" x 164'

24" x 164'

50" x 164'
Cutting area of guaranteed accuracy(W x L)
(when using the basket)

14" x 79"

23" x 79"

50" x 79"
Mountable media width 2"
19"		 2"
28"		 2"
60"
Number of push rollers 2 rollers 4 rollers
Maximum cutting speed 24"/s, in all directions 36"/s, at 45º direction 39"/s, at 45º direction
Maximum acceleration 69.6' (21.2 m/s2), at 45º direction 45.60' (13.9 m/s2), at 45º direction
Maximum cutting force 4.41 N (450 gf) in 38 steps
Minimum character size Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm
Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)
Mountable number of tools 1 tool
Blade type Supersteel
Pen type Oil-based ballpoint, Water-based fiber-tip pen
Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film,
up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m
Interface USB 2.0 (Full Speed), Ethernet
10BASE-T/100BASE-TX
Buffer memory 2 MB
Command sets GP-GL / HP-GL (Set by command or auto-detect)
Display Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Registration mark sensing system Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,
4-points axis alignment, Auto mark detect
Alignment accuracy Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption 120 VA
Operating environment 10 to 35 deg C, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment 16 to 32 deg C, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)
(with Basket)

Approx. 30.4" x 11.5" x 12.3"

Approx. 39.6" x 23" x 43"

(39.6" x 36.9" x 43")

Approx. 67" x 32" x 48"

(67" x 45.2" x 48")
Weight (Approx.)
(with Basket)		 27.7 lbs (13kg)

51 lbs (23 kg)
55.6 lbs (25.2 kg)

 112.4 lbs (51 kg)
121 lbs (54.9 kg)
Compatible OS (*2) Windows 10 / 8.1 / 7
Mac OSX 10.6 - 10.11 - 10.12 - 10.15
Included software Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac),
Windows driver
Compatibility Standards Safety PSE, UL/cUL, CE mark
EMC VCCI Class A, FCC Class A, CE mark
