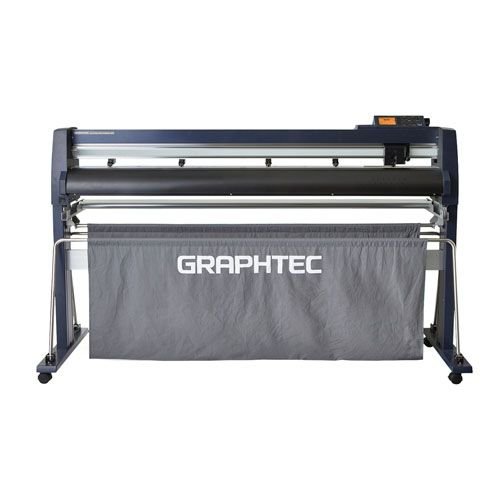

54" Graphtec FC9000-140 Series High-Performance Cutting Plotter

54" Graphtec FC9000-140 Series High-Performance Cutting Plotter
54" Graphtec FC9000-140 Series High-Performance Cutting Plotter
SKU: FC9000-140
Average Ratings: votesliked this product (1 votes)
The Graphtec FC9000-140 vinyl cutting machine is a top-performing cutter plotter. This vinyl cutter features advanced technology that ensures precise cuts every time, making it an ideal choice for businesses that require accuracy and efficiency. It is compatible with multiple software programs such as Adobe Illustrator, CorelDRAW, Flexi, SignLab, and Graphtec Pro Studio.
You can earn 6395 SIGN BUCKS on this product!
Price: $6,395.00
Product Details

The Graphtec FC9000 vinyl cutting machine is a high-performance cutting plotter that can handle various materials and applications. The newly developed feeding system and cutting head have further improved the cutting quality of thin and thick materials. This cutting plotter can handle everything from delicate window tints to reflective materials and does it all quickly and precisely.

The FC9000 vinyl cutter is incredibly versatile, with enough downforce to handle high-intensity reflective materials. It also features an automatic registration mark sensor for contour cutting, stand, media, and a user-friendly LCD panel. With the FC9000, you can unleash your creativity and productivity, making it an excellent tool for any cutting project.

ARMS 8.0 features the introduction of Graphtec's Datalink barcode generation system which efficiently loads and processes your jobs automatically.

For more info on the FC9000 visit Graphtec here



ModelFC9000-75FC9000-100FC9000-140FC9000-160
CPU32-bit CPU
ConfigurationGrit rolling plotter
Drive methodDigital servo drive
Max. cutting speed58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting forceMax. 600 gf in 48 steps
Axial accelerationMax. 39.2 m/s2 (4 G) in 8 steps
Max. cutting area

(W x L) (*1)

30 in x 164 ft

762 mm x 50 m

42 in x 164 ft

1067 mm x 50 m

54 in x 164 ft

1372 mm x 50 m

64 in x 164 ft

1626 mm x 50 m

Guaranteed precision cutting area (*1)29.21 in x 50 ft

41 in x 32 ft,

35.2 in x 50 ft

53 in x 32 ft,

35.2 in x 50 ft

63 in x 32 ft,

35.2 in x 50 ft

Mountable media width(*2)

Min. 1.96 in
Max. 36.22 in

Min. 1.96 in
Max. 48.19 in

Min. 1.96 in
Max. 60.20 in

Min. 1.96 in
Max. 72.83 in

Max. cross cut width30 in42 in54 in64 in
Number of push rollers2 rollers3 rollers4 rollers4 rollers
Compatible roll media diameterMin. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
Mechanical resolution0.005 mm
Programmable resolutionGP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL: 0.025 mm
Distance accuracy (*2)Max. 0.1 mm or 0.1 % of plotted length
Repeatability (*2)Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
Minimum character sizeApprox. 5 mm alphanumeric (varies depending on character font and media)
Mountable number of tools1 tool (cutting blade, plotting pen or pouncing tool) in standard;
2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
Blade typesSupersteel (0.9 mm or 1.5 mm diameter)
Pen typesWater-based fiber-tip pen, Oil-based ballpoint pen
Pouncing tool typeSteel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types (*3)Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,
Sandblast resist rubber up to 1 mm thick
Compatible paper for pouncingRegular paper from 0.06 to 0.13 mm thick
Cross-cutterBuilt into the tool carriage
Perforation cuttingSupported (performed by force control)
InterfaceUSB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory2 MB
Command setsGP-GL / HP-GL emulation (Set by menu or command, and selects from GP-GL, HP-GL, or Auto select)
Condition settingsDual configuration (save two (2) user settings with eight (8) separate condition settings per user)
DisplayGraphic type LCD (3.7-inch, backlight)
Power source100 V to 240 V AC, 50 / 60 Hz
Power consumptionAC100-240 V, 50/60 Hz
Operating environment50 to 95 deg F, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment60 to 89 deg F, 35 to 70 % R.H. (non-condensing)
External dimensions
(W x D x H)

Approx. 50" x 28" x 48"

(1270 x 711 x 1219 mm)

Approx. 61.8" x 28" x 48"

(1570 x 715 x 1219 mm)

Approx. 73.6" x 28" x 48"

(1870 x 711 x 1219 mm)

Approx. 84" x 28" x 48"

(2130 x 711 x 1219 mm)

Weight (*8)108 lbs.123 lbs.141 lbs.
178 lbs. /w take-up
154 lbs.
195 lbs. /w take-up
Included software (*6)Windows driver, Plotter controller, Graphtec Pro Studio (*5),
Cutting Master 4, Graphtec Studio for Mac
Compatible OS (*5)Windows 10 / 8.1 / 7
Mac OS X 10.6 to 10.11
Mac OS 10.12 to 1.14
Graphtec Studio: 10.6 to 10.14
Cutting Master 4: 10.7-10.14
SafetyPSE, UL/cUL, CE mark)
EMCVCCI Class A, FCC Class A, CE mark


Product Reviews
Average Ratings: 100% liked this product100% liked this product (0 votes)
Rate this product: Like it  Like it Don't like it  Don't like it

Best vinyl cutter

"Best vinyl cutter"

Jimmy R. on 1/23/2024 7:05:02 PM

Comments: I wish I upgraded to a larger cutter years ago. This Graphtec FC9000 is a game changer. Fast accurate and way better than my old cheap cutter.
