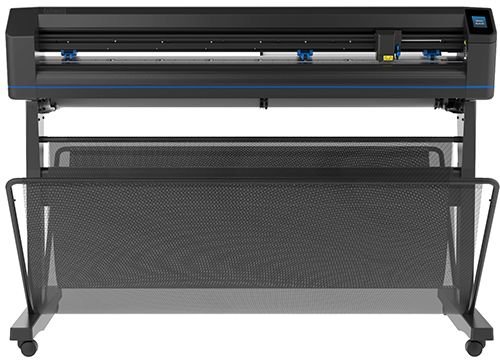

Summa S One D120, 48" Dragknife Cutter with Integral Stand, Basket and Media Support System

Summa S One D120, 48" Dragknife Cutter with Integral Stand, Basket and Media Support System
Summa S One D120, 48" Dragknife Cutter with Integral Stand, Basket and Media Support System
SKU: S1D120
The brand new S One Series replaces the renowned SummaCut Series and is to be considered an upgrade with a lot more functionality. This combination of advanced features makes the S One roll cutter a flexible and future-proof unit
Brand: Summa
Cutter Width: 48"
You can earn 5290 SIGN BUCKS on this product!
Price: $5,290.00

EASY-TO-USE, COST-EFFECTIVE CUTTER FOR HIGH-VOLUME
VINYL CUTTING JOBS

S One drag knife cutters include many intelligent features and up-to-date techniques to deliver high contour cutting accuracy for printed graphics.

THE PERFECT COMPANION TO GROW WITH YOUR BUSINESS

The brand new S One Series replaces the renowned SummaCut Series and is to be considered an upgrade with a lot more functionality. This combination of advanced features makes the S One roll cutter a flexible and future-proof unit.

GoSign cutting software tailored to your needs

The user-friendly software GoSign is your first choice cutting software, allowing you to manage your preferred workflow with great flexibility. Settings and action sets can be created and tailored according to your specific cutting jobs at any given time.

OPOS Alignment for smart production

The Optical Positioning System is an automated contour alignment system. The OPOS X sensor technology senses 4 to 128 marks on a wide range of materials. Enjoy a fully-automated workflow using OPOS barcodes, enabling you to contour cut multiple jobs without intervention.

Ergonomic TouchScreen

The intuitive menu system and ergonomic touch interface allow for effortless navigation. Tactile and easy to use, the touchscreen displays large amounts of information in an easily accessible format.

Unmatched Die-Cutting Precision

Summa's unique FlexCut feature takes cutting technology to the next level. This adjustable feature creates a perforated cut that allows the material to retain the necessary rigidity to transport through the cutter while remaining easy to break apart into individual pieces.

Legendary tracking for ultimate precision

Summa's exclusive MicroSprocket drive drum, coupled with powerful servo motors, delivers jaw-dropping accuracy. Media is conditioned as it advances to assure spot-on tracking precision.

Ethernet, USB and WiFi connectivity

Multiple computers can control one unit across a network via Ethernet, USB or WiFi. Also, a crossover cable can be used for direct connection - creating an all-new avenue for faster communication and data transmission speeds.

WiFi: Region dependent

Enhanced ease-of-use

Mechanical adjustable parts are highlighted with a light blue colour, enabling the operator to quickly switch between them. Also, changing tools for a quick setup of the next cutting job is now a child's play.

OPOS Xtra to cut intrinsic details

The OPOS sensor system reads registration marks blistering fast en compensates bleed automatically. Additionally, the OPOS Xtra functionality is specifically beneficial for the processing of small sticker jobs, detecting curvature changes more accurately than ever.

State-of-the-art drive system

The S One servo motor drive system ensures the cutter can still cut at high speeds, even in the most challenging curves. High working speeds are yours to enjoy!

Product Details
MODELS S1 D75 S1 D120 S1 D140 (FX) S1 D160
CUTTING TYPE Drag knife with TurboCut and Tangential Emulation Modes
TOOL COMPATIBILITY Blade, Pen, Pounce Tool
CUTTING WIDTH 74 cm (29 inch) 120 cm (47 inch) 135 cm (53 inch) 158 cm (62 inch)
CUTTING SPEED All S One models cut at speeds up to 1131 mm/sec (44 ips) diagonal
AXIAL ACCELERATION Up to 2 G
ALIGNMENT TYPE
  • OPOS X - OPOS Xtra
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-line compensation
MAXIMUM ACCELERATION Up to 3G diagonal
TRACKING PERFORMANCE Within +- 0.1 mm (+- 0.004 in.) on plots up to 8 m long (40 ft.); on rolls up to 760 mm wide
Within +- 0.1 mm (+- 0.004 in.) on plots up to 4 m long; on rolls over 760 mm wide
CUTTING FORCE 0-600 grams of down-force, in 5-gram increments
Note: FX has 0-400 grams of down-force, in 5-gram increments
REPLOT MEMORY 10 MB Buffer Size
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Portuguese
CONNECTIVITY USB, Ethernet, WiFi (region dependent)
POWER REQUIREMENTS 100-240 VAC, 50/60 Hz
DIMENSIONS 111.2 (W) x 70.4 (D) x 111 (H) cm (44.1 (W) x 27.7 (D) x 43.8 (H) in.) 161.5 (W) x 70.4 (D) x 111.2 (H) cm (63.6 (W) x 27.7 (D) x 43.8 (H) in.) 176.5 (W) x 70.4 (D) x 111.2 (H) cm (69.5 (W) x 27.7 (D) x 43.8 (H) in.) 196 (W) x 70.4 (D) x 111.2 (H) cm (77.2 (W) x 27.7 (D) x 43.8 (H) in.)
WEIGHT 36 kg (78.4 lbs) 43 kg (94.8 lbs) 43.5 kg (95.9 lbs) 48 kg (105.9 lbs)
OPERATING TEMPERATURE 15deg to 35deg C (59deg to 95deg F)
STANDARD ACCESSORIES Summa GoSign software, Summa CutterControl & MacSign plug-ins, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36deg Blade Holder, 2 Standard 36deg Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
OPTIONAL ACCESSORIES Stand only or basket only or stand and basket for S1 D75
