Digital Knight Automatic 20x25 Swing-Away Press

Digital Knight Automatic 20x25 Swing-Away Press
Digital Knight Automatic 20x25 Swing-Away Press
SKU: DK25SP
The Digital Knight DK25SP is an air-operated, automatic 20"x25" swing-away heat press.
You can earn 4850 SIGN BUCKS on this product!
Price: $4,850.00
Product Details

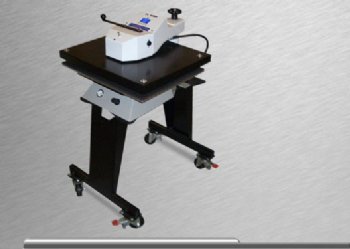

The Digital Knight DK25SP is an air-operated, automatic 20x25 Oversized swing-away heat press with a state-of-the-art control system and heavy-duty solid steel welded framework. The smooth automatic pressing and push-button activation provides a productive, fatigue-free operation.

The extended 20x25 size of the heat platen is perfect for sublimation and large format materials pressing. The heat platen uses SuperCoil-Microwindingâ„¢ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times. The controller utilizes an easy to read oversized-digit LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°F. The operator can use the 70 programmable presets for saving common application settings, and the press features a highaccuracy pressure regulator and pressure gauge for specific psi settings. The press is adjustable to accommodate materials from fabric thickness all the way up to 2" thick substrates!

This 20x25 sized air-operated press includes a stand and lockable heavy-duty casters as well. For the ease of high-pressure air operated operation and 20x25 platen sized pressing area, the DK25SP is the ideal solution.

FEATURES

  • Same features as the DK20SP (Air Op Automatic) but with an OverSized 20" x 25" heat platen
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 3000 lbs max
  • Can press materials up to 2" thick
  • 70 Programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwindingâ„¢heater technology
  • Accommodates materials up to 2" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen
  • Heavy duty stand with lockable casters
  • Custom large sizes available (call factory)

WARRANTY

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts
